HOW TO INSTALL YOUR NEW REPAIR CABLE: (For the PDF version: CLICK HERE)

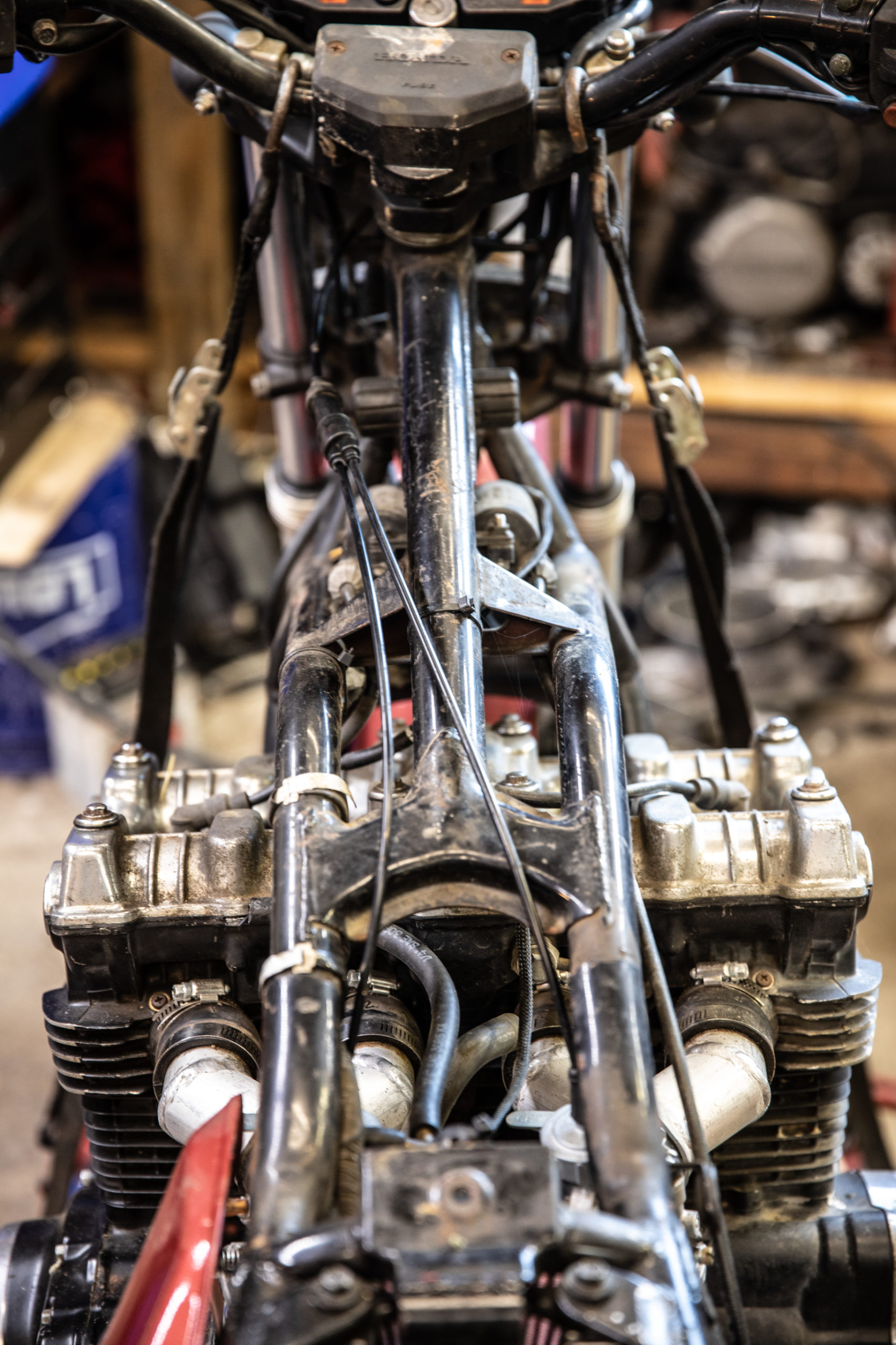

First, remove seat, disconnect fuel line and remove your tank.

This photo shows the throttle cables as part of the Murray's Carbs repair cable install.

Next, loosen the hose clamps and remove your air filters from the carb bodies.

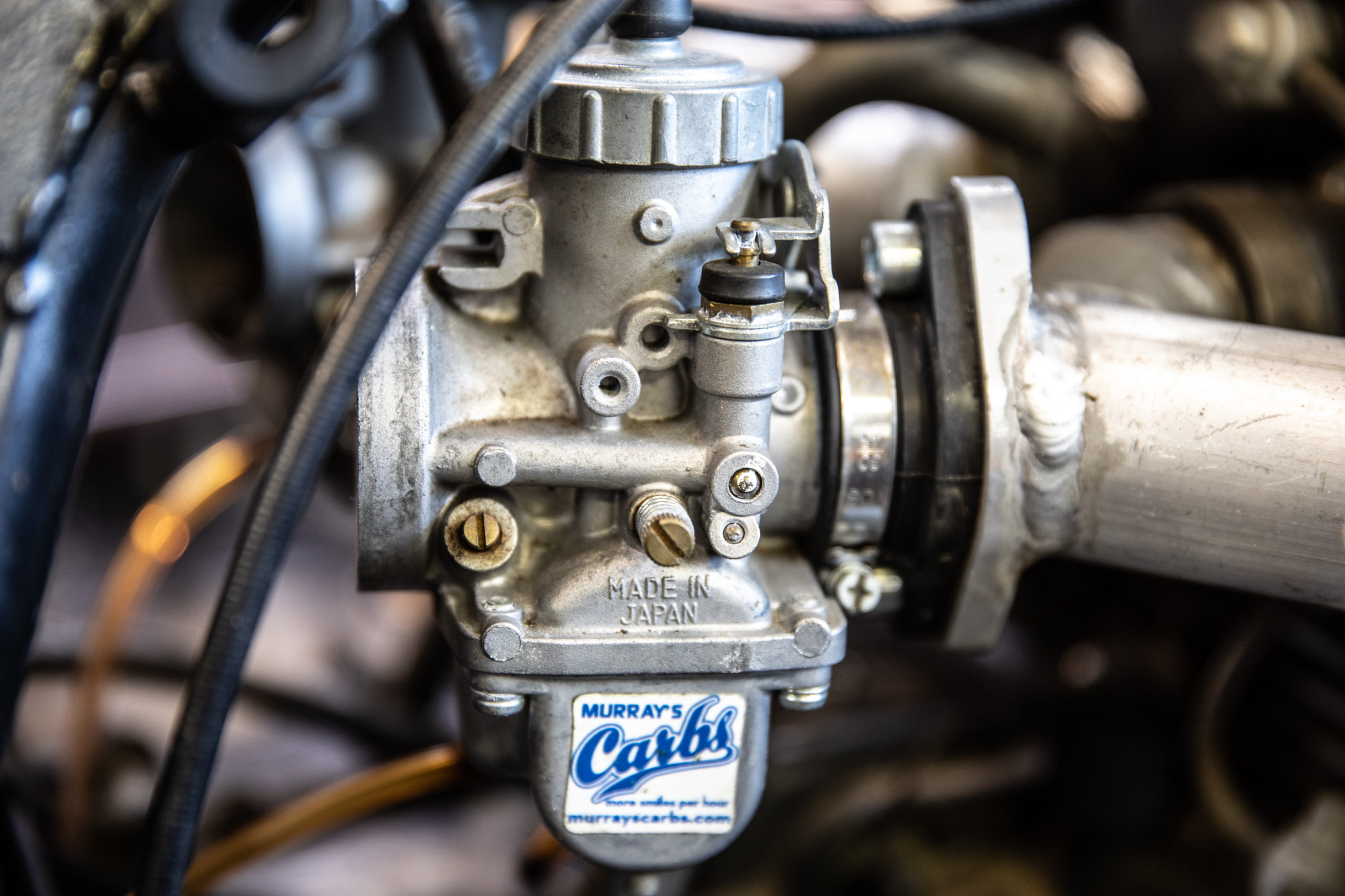

This is a photo of Murray's Carbs Mikuni carb kit.

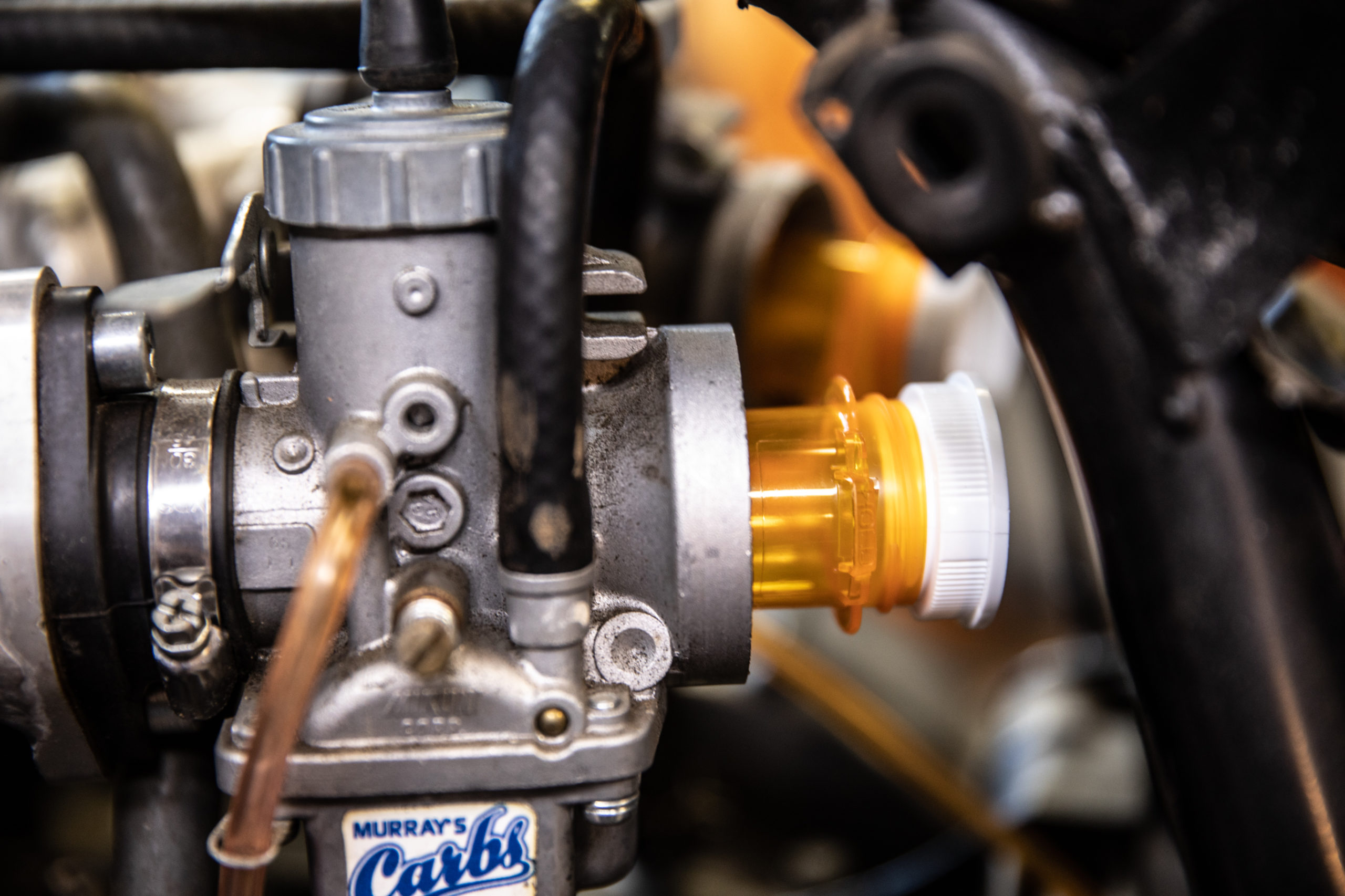

While twisting the throttle to full open (you may have to pull the cable and raise the slide manually depending on damage), gently place two small pill bottles inside the carburetors underneath the slides.

This photo shows part of the process of removing the throttle cable.

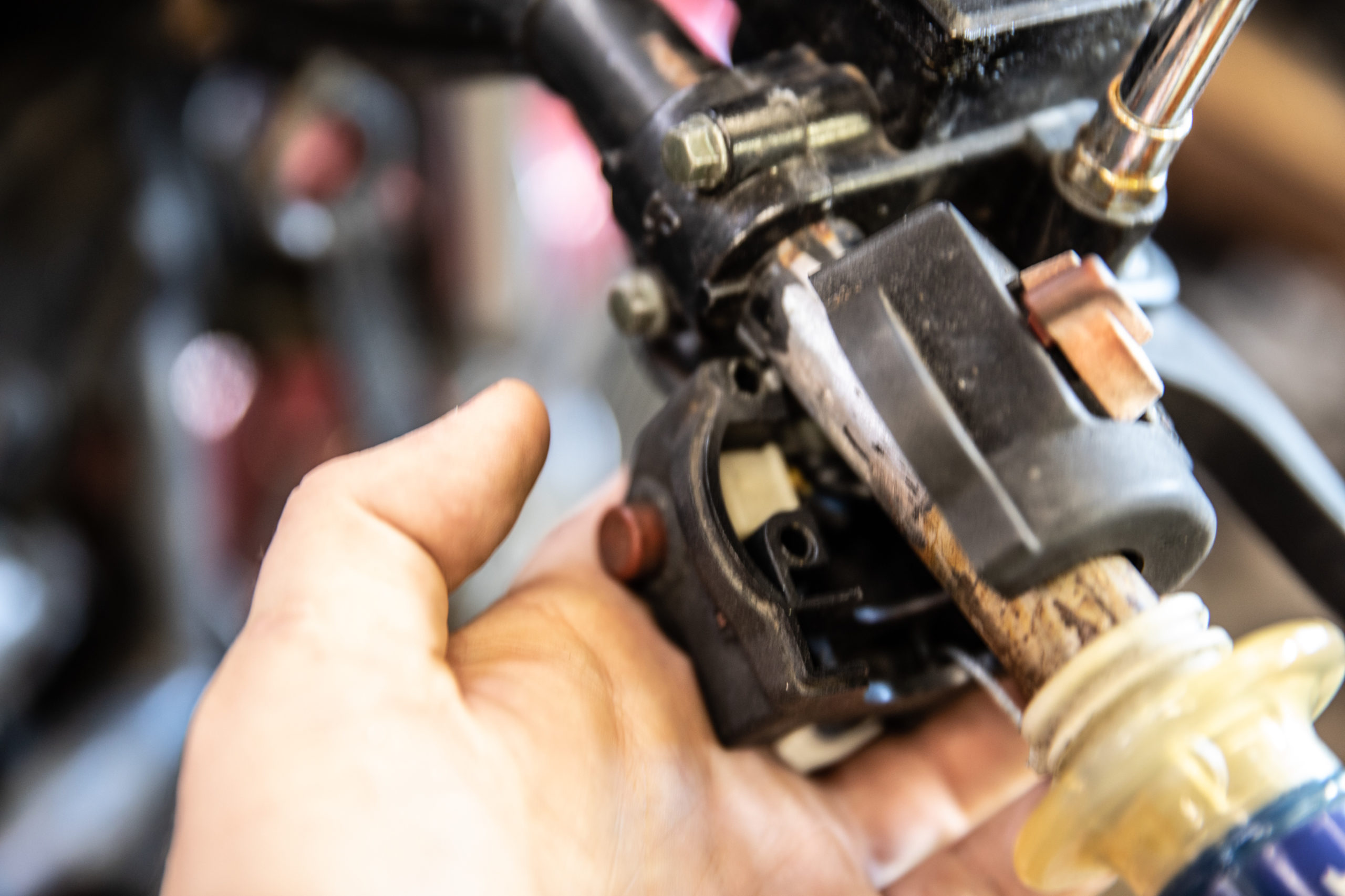

Disassemble the throttle housing, and disconnect your old cable from the throttle tube.

This photo shows disconnecting the throttle cable at the controls end.

Loosen throttle bolt from housing and untwist the throttle cable from the throttle house assembly.

This photo shows removing the cable from the throttle assembly.

Route your new cable directly beside your old one through the bike to ensure correct routing before removing the old cable.

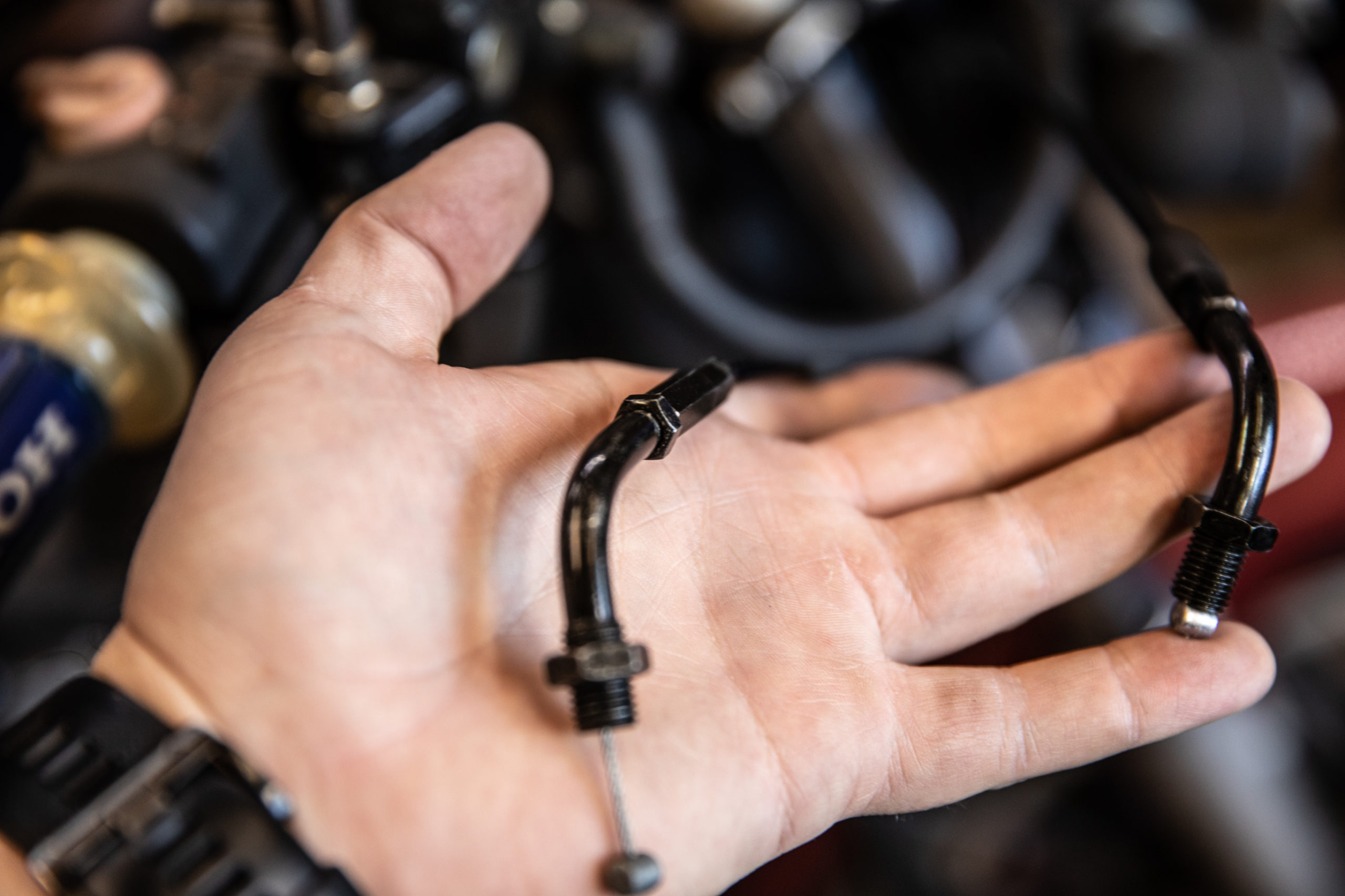

This photo shows the new and old cables side by side.

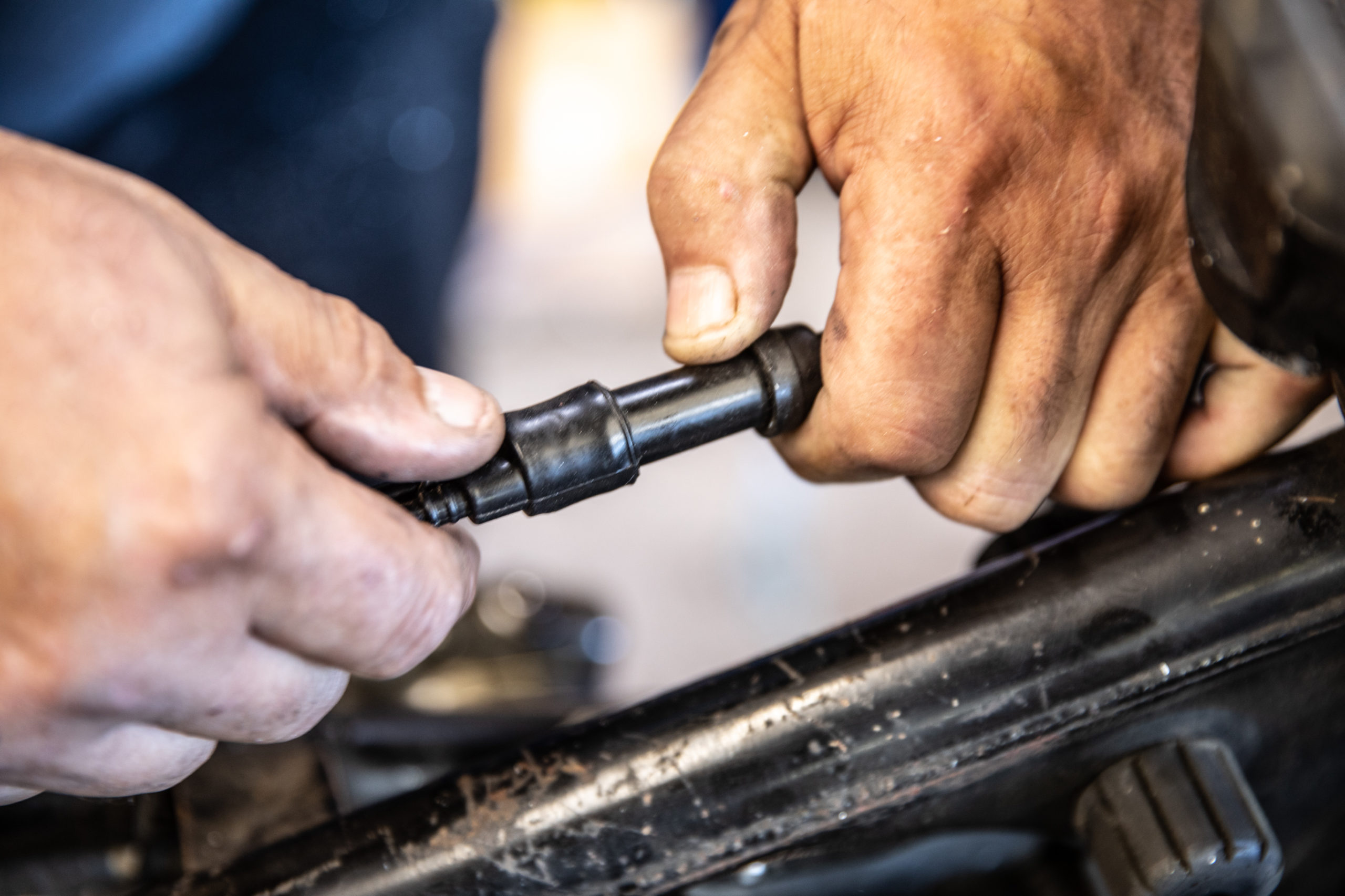

Gently bend open the cable connector exposing the inside cable assembly.

This shows exposing the inner throttle cable assembly.

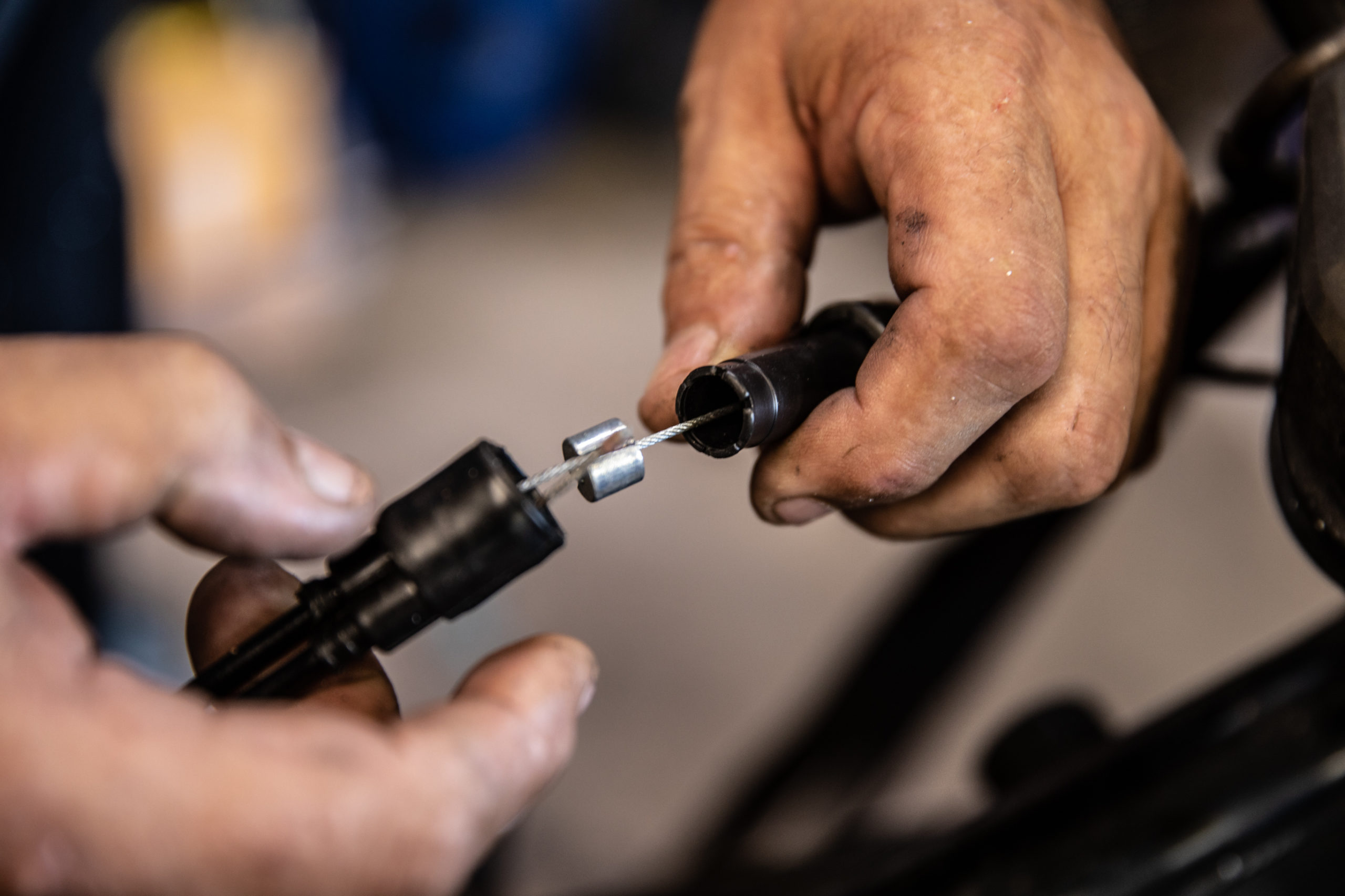

Disconnect the dual cables from the splitter assembly freeing the old upper cable.  You can now discard the old cable.

This photo shows disconnecting the cable splitter.

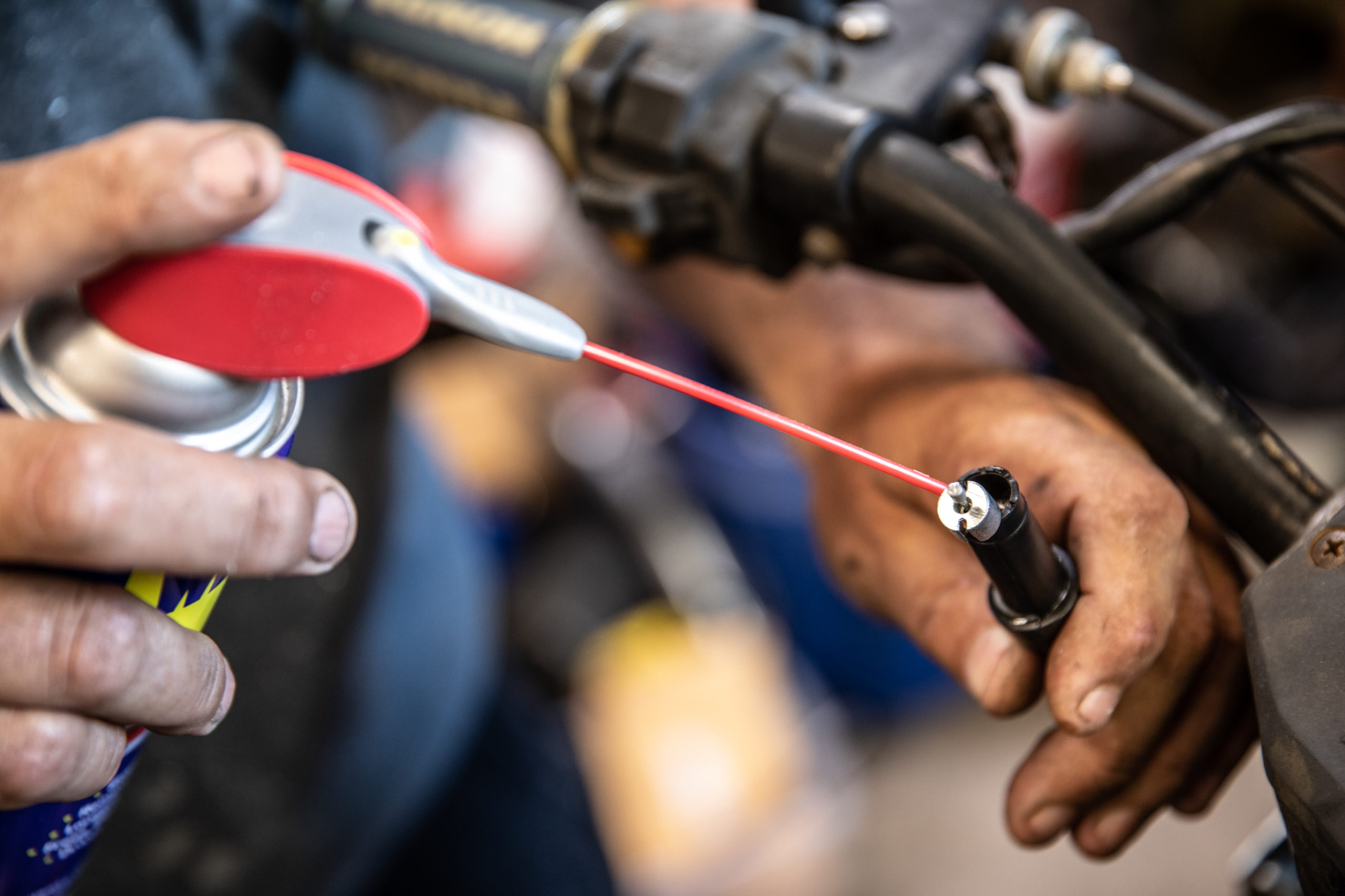

Before routing your new cable oil it to ensure smooth operation and to prevent fraying and rust.

This photo shows lubricating the cable.

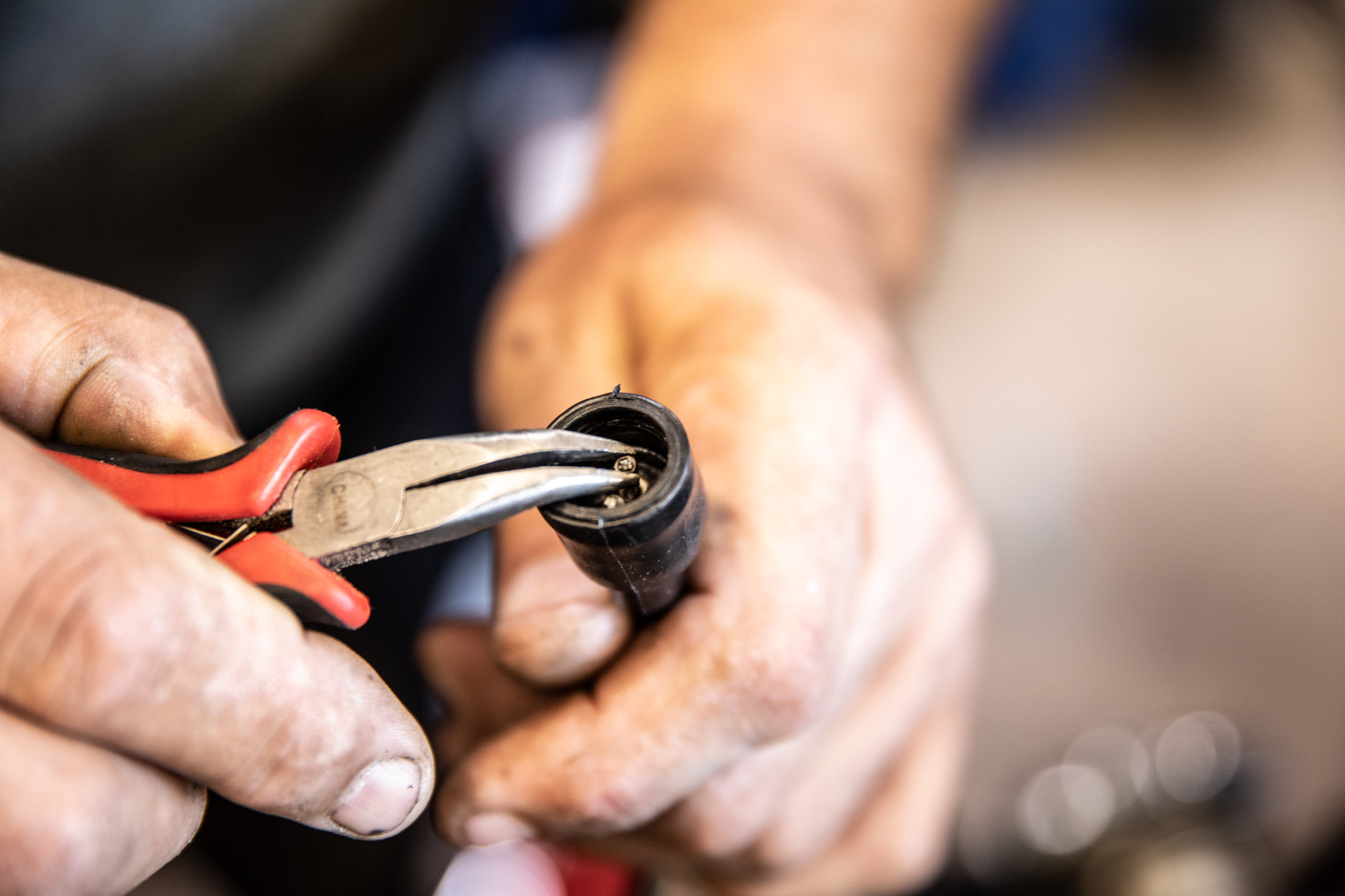

Using needle-nose pliers, extend both cables from the carb side of the cable and attach your new cable.

This photo shows pulling the cable with needle nose pliers.

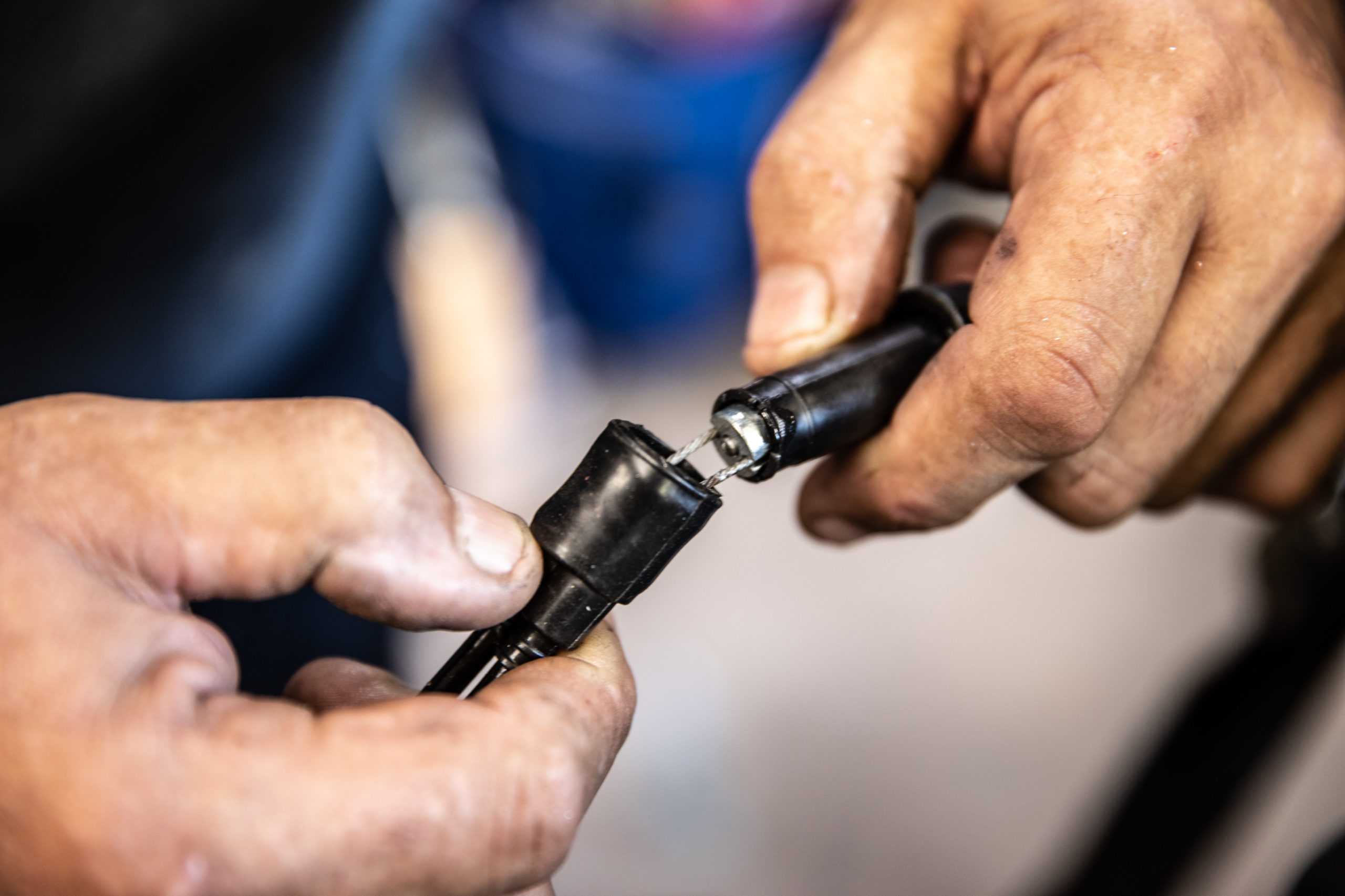

Next, press the cable fitting back together.  You should hear and feel the fitting securely connect.

This photo shows reconnecting the cables.

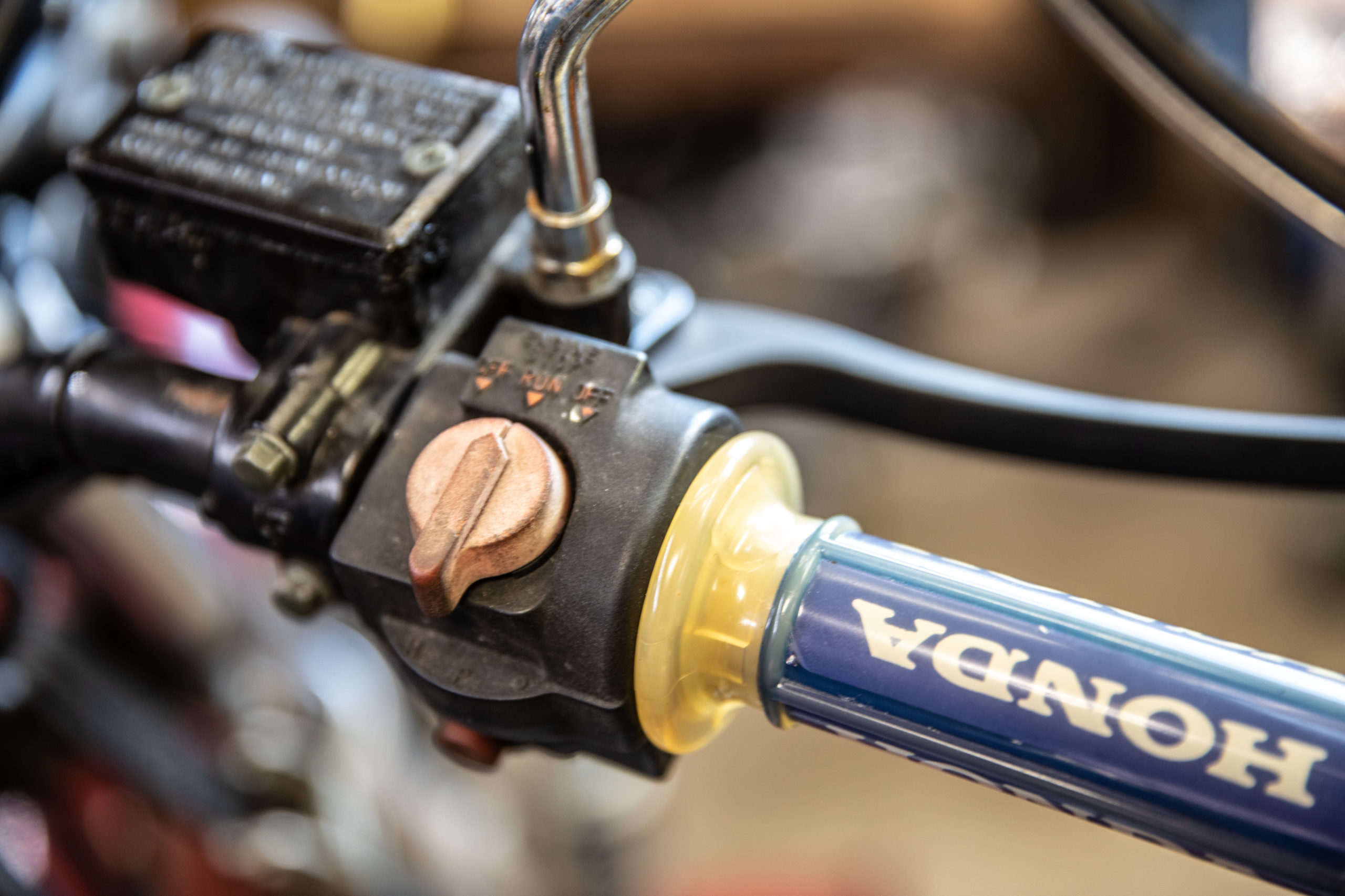

Reconnect your cable to the throttle tube, reassemble the throttle housing, twist in the throttle cable, and snug the cable nut to the housing.

This photo shows reconnecting the cable to the throttle tube.

Remove the pill bottles from the carb bodies.

This photo shows the pill bottles removed from the carbs.

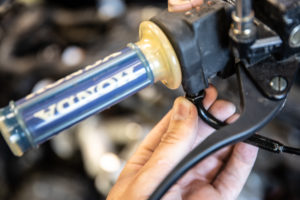

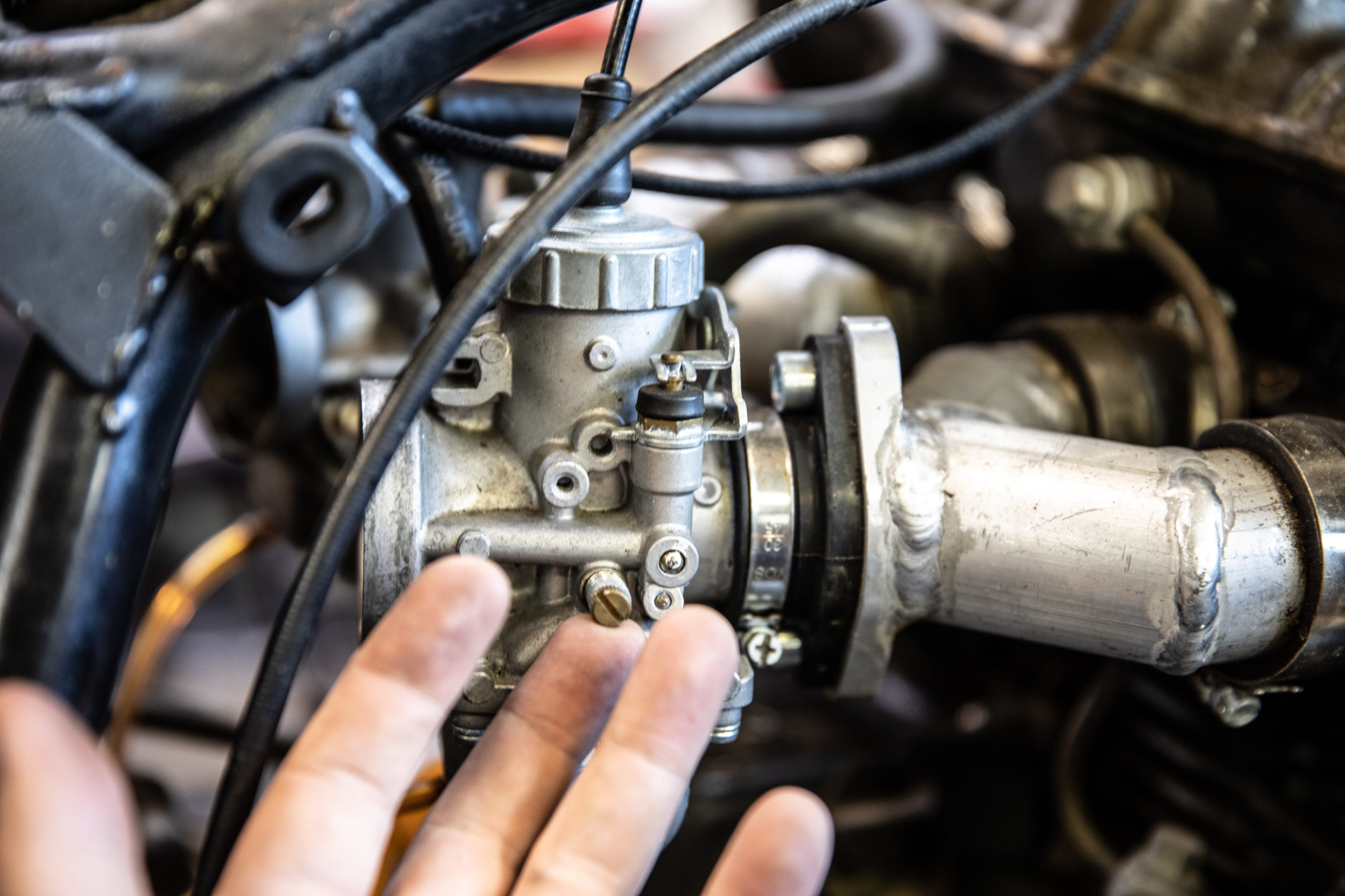

Next, hold a finger on your idle screws one at a time, open the throttle and let it snap back.   You should feel the slides reseat through the idle screw.  This ensures the throttle is working freely and correctly. Make sure to check both sides.

This photo shows opening the throttle and snapping it back and feeling the slides seat.

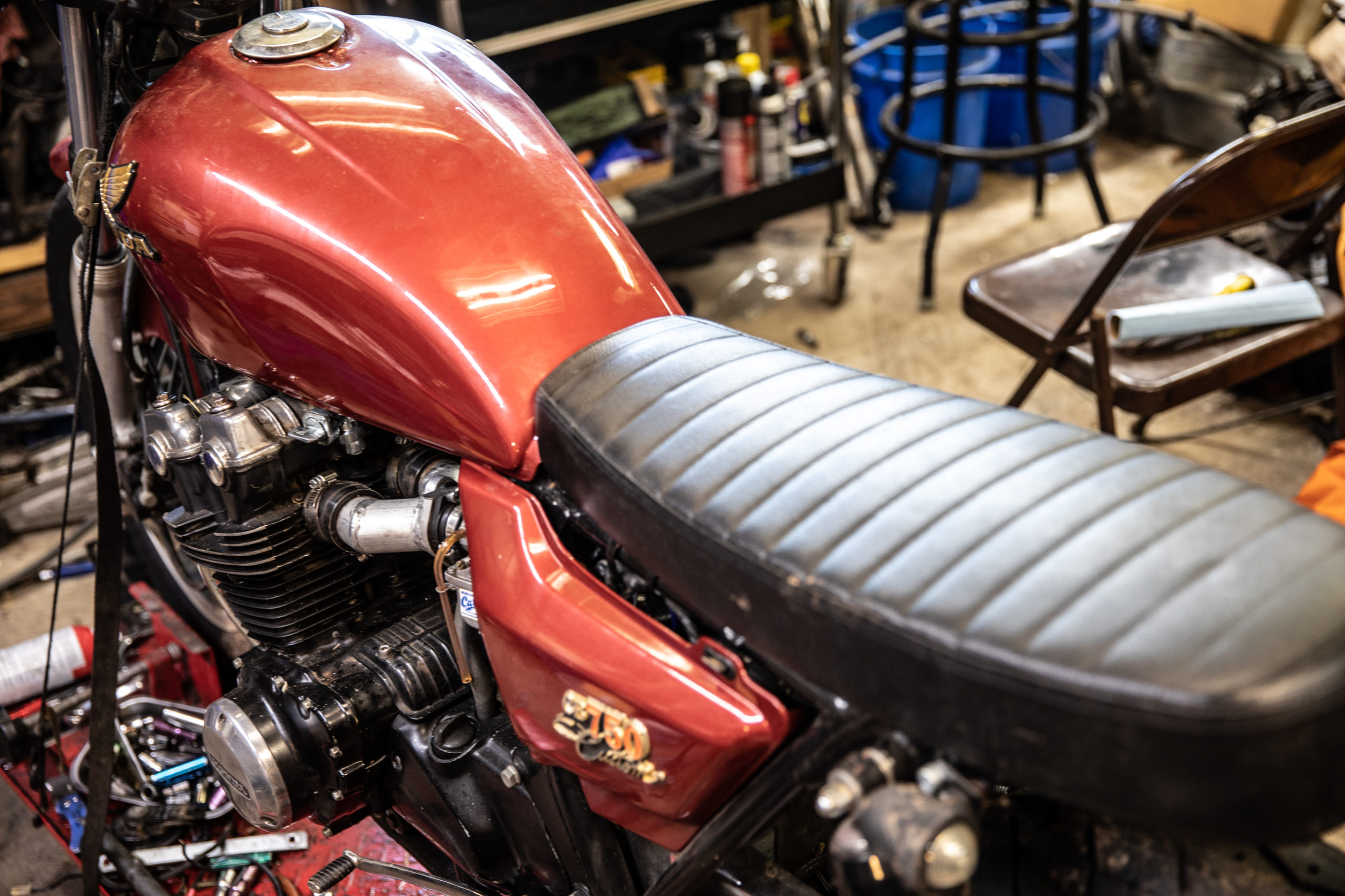

Visually inspect your carbs then reinstall your air filters, tank, fuel line, seat, etc and test the new cable with your machine running.

At this point you're almost done - do a visual inspection.
