This is a MOSFET direct plug and play replacement regulator rectifier for Honda’s CX and GL motorcycle range.
Matt from Sparck Moto and Murray worked together to make these the best and easiest MOSFET upgrade on the market for your CX500, GL500, CX650 or GL650/700.
They are plug and play to your stock harness and the bolt holes in the heat sink will even bolt back up in the stock location if you wish. There is no wiring no guessing and they even come with new heavy duty connectors and terminals for the harness end in case yours are cracked, sunburnt or melted.
Voltage regulation set at 14.4V and as such is safe for use with LI-ION batteries.
This regulator rectifiers is rated to 40 amp continuous and 60 amp intermittent – well over double the stock unit. This means that if you want to install a 250W, 300W or 350 watt heavy duty Goldwing stator to keep your self nice and warm, run a 2000 watt stereo amp or maybe even light up a highway go for it, but remember that you will need to uprate your main fuse to match the output of your bigger stator.
These will work with all battery types and are warrantied for 1 year so plug play and go riding!
They’re 400 Watt continuous and 600 Watt peak (not amp).

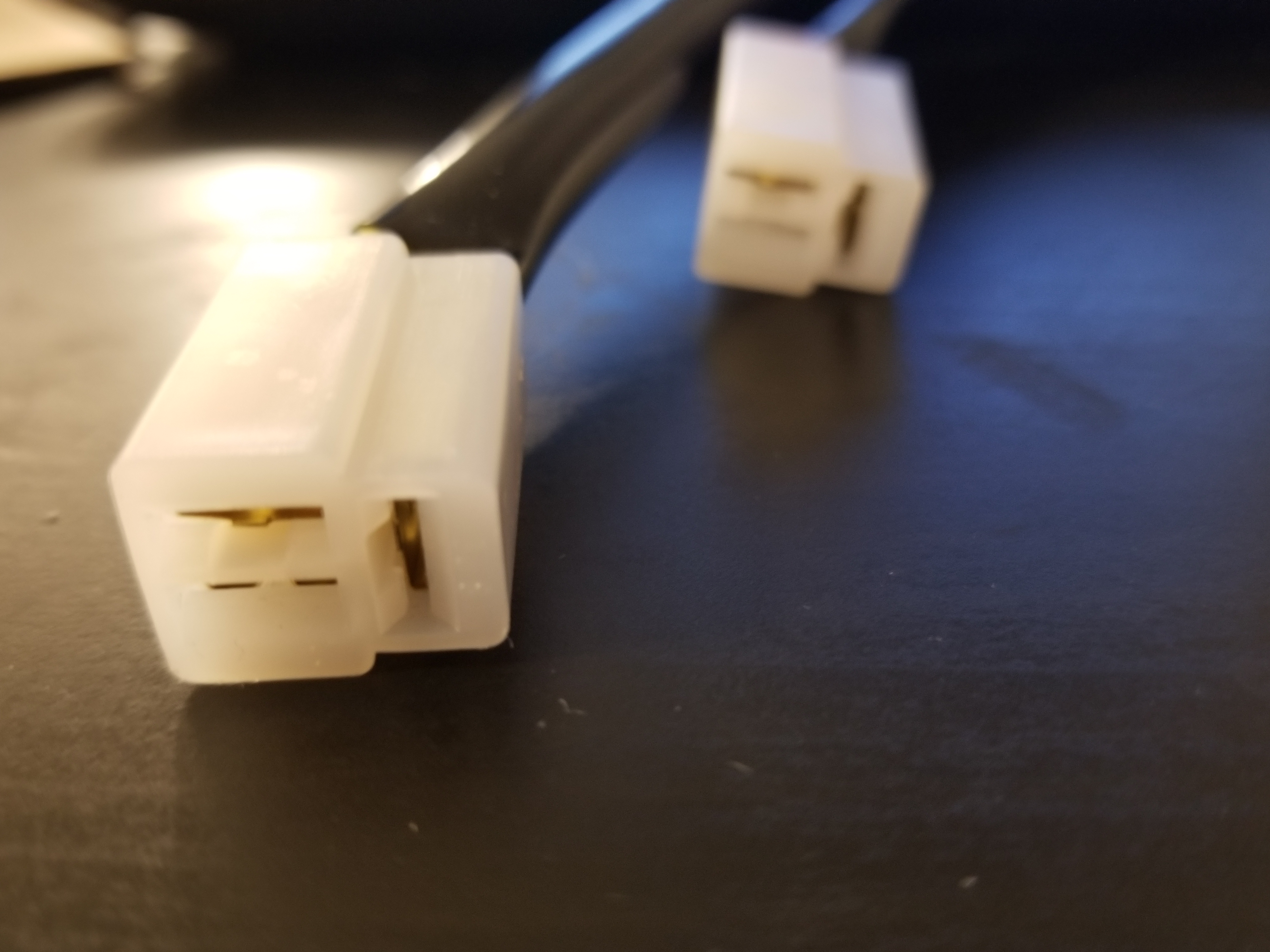

PLEASE SELECT YOUR MODEL FROM THE DROPDOWN BOX TO GET THE CORRECT CONNECTORS FOR YOUR BIKE. Not sure which one is going to fit? The CX500 reg/rec model has these connectors:

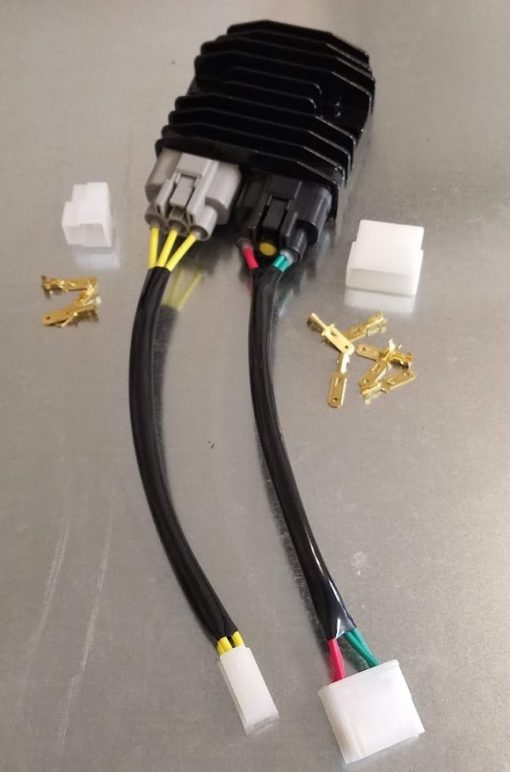

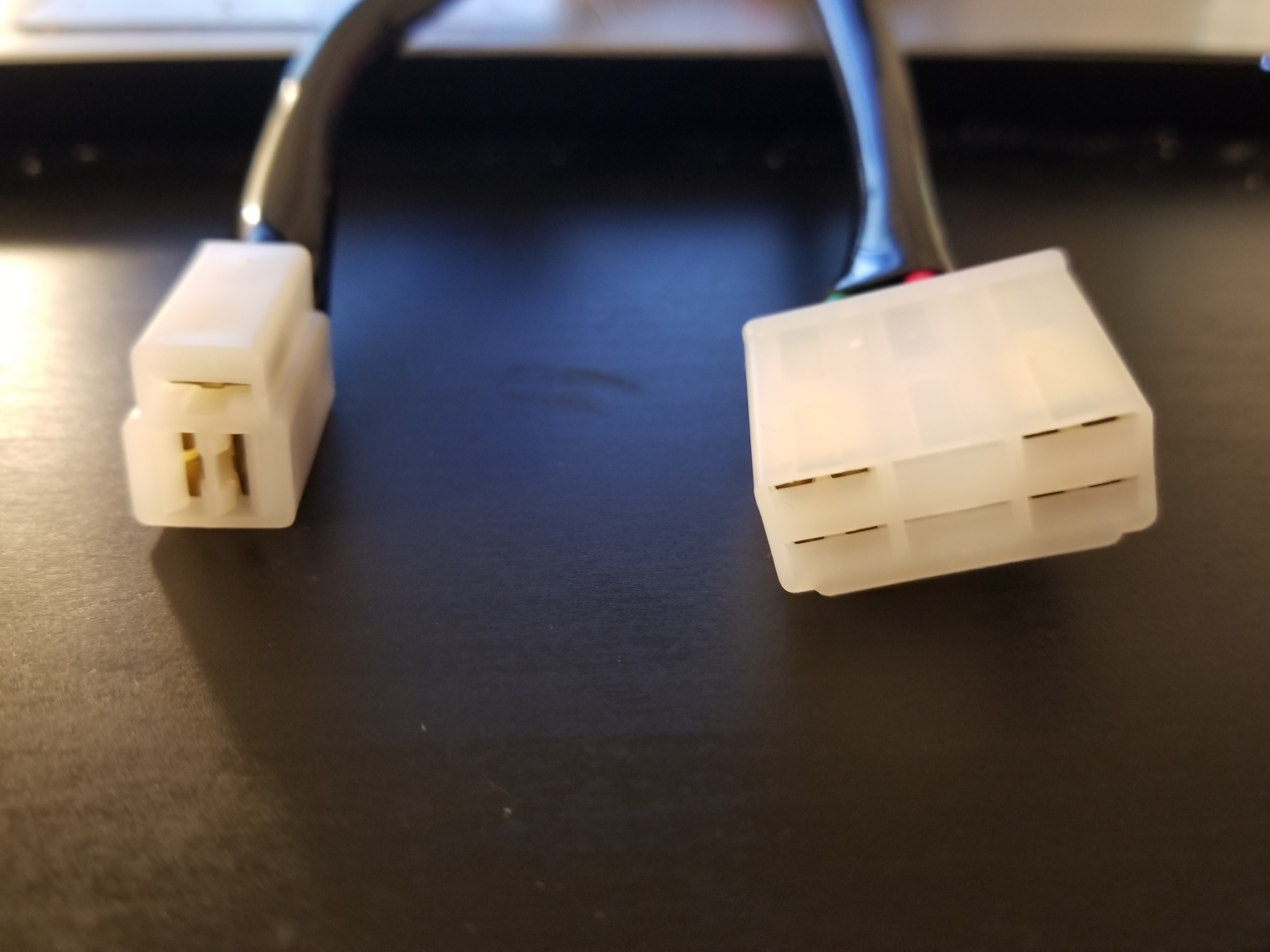

GL500:
For the extension cables separately see this product.
Note that this is not the same shape as the CX650C reg/rec but it does work as it should, and with an extension can be relocated elsewhere while you retain the original for looks.
| Weight | 2 lbs |
|---|---|
| Dimensions | 10 × 10 × 10 in |
| Model | CX500, GL500, GL650, CX650E or C, DIY harness |
| BRAND | MURRAY'S CARBS |
